Reparando un antiguo joystickRepairing an old joystick

Como muchos saben, tengo una afición por equipos Apple antiguos, en especial la Apple //c. Recientemente encontré a buen precio un joystick fabricado por Apple específicamente para la //c, que tiene la particularidad de ser color platino en lugar del beige de los demás modelos de Apple II.

Estos modelos de joystick por cierto se han vendido muy caro en eBay, hasta US$200, por lo que había perdido la esperanza de hacerme de uno. Cuando vi la oportunidad, decidí arriesgarme y al final lo gané por $16. Nada mal, sin embargo cuando lo conecté a la computadora, pude comprobar que los botones de disparo no funcionaban.

Me encontré ante un dilema, pues no existen piezas de repuesto para este equipo, así que procedí a abrirlo para tratar de repararlo.

Primero al abrirlo, veo que es un sistema sencillo: la manija centrl con los servos, y los dos switches, que se conectan a los botones directamente con un pequeño resorte.

Al probar los switches veo que es el problema, hace falta mucha y constante presión para hacer actuar el switch. Éste viene sellado, es una base plástica con un botón sostenido con un marco metálico “soldado” a cuatro puntos de plástico.

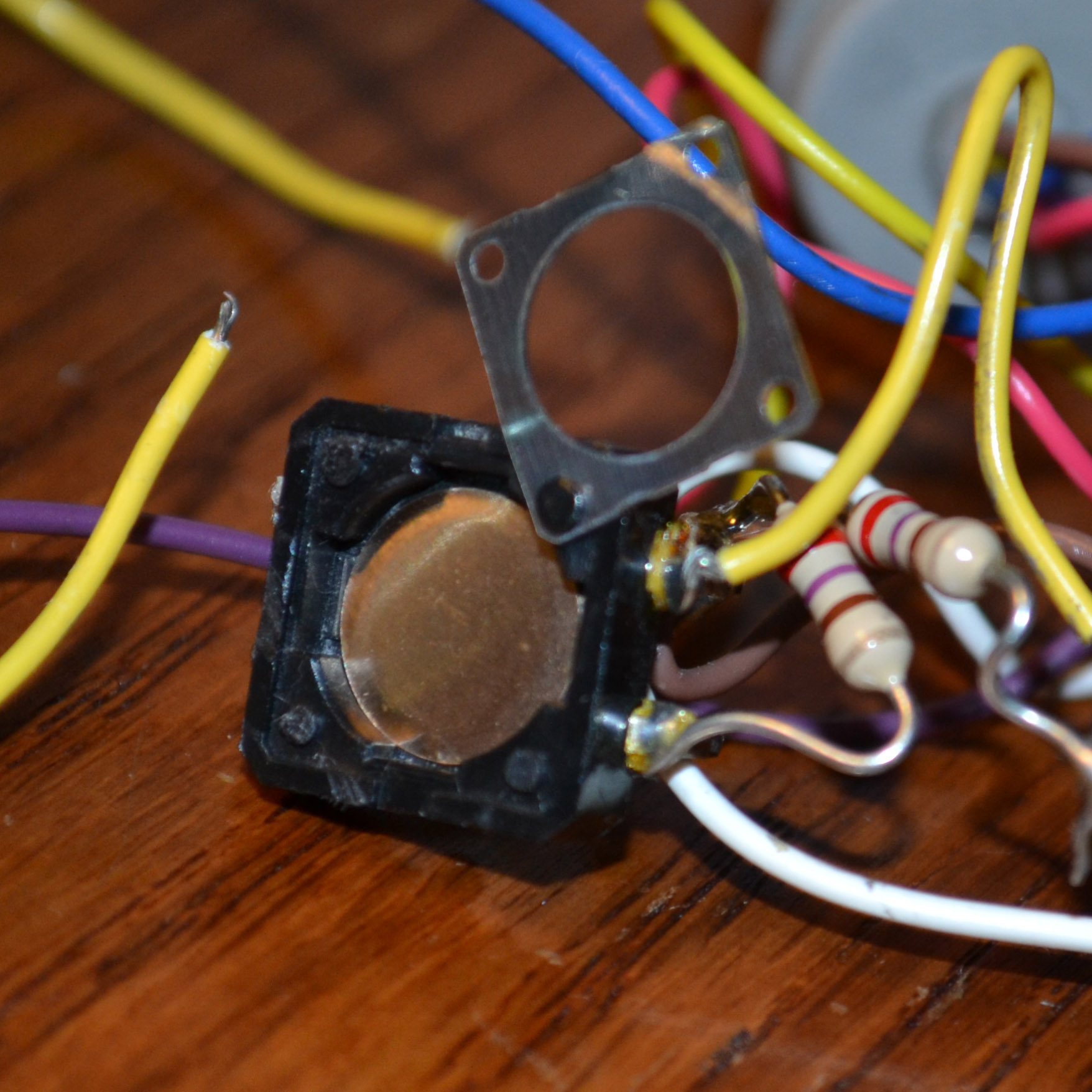

Procedí a rebanar tres de estos “remaches” para liberar el marco, sacar el botón circular de plástico y encuentro una placa también circular que es la que hace contacto entre dos piezas metálicas a las orillas y un tercer área circular metálica en el medio.

Como era de suponerse, estaban muy sucias, llenas de polvo y no sé qué mas. Limpié exhaustivamente todo con un paño  y alcohol, dejándolo bien limpio.

Volví a armar, soldar un par de cables que desconecté al abrirlo, y probé de nuevo. El resultado fue exitoso. Armé de nuevo el joystick y ahora no solo funciona, sino que es bastante sensible.

As many are aware, I have a fondness for old Apple computers, especially Apple //c. Recently I found a low priced joystick that was manufactured specifically for the Apple //c, as being platinum beige instead of other models of Apple II.

These specific model of joystick have sold very high on eBay, up to $ 200, so I had lost hope of getting one. When I saw the opportunity, I decided to go for it and won it for $16. Not bad, but when I plugged it into the computer, I could see that the trigger buttons were not working.

I found myself in a dilemma, since there are spare parts for this equipment, so I proceeded to open it to try to repair it.

First to open, I see that is a simple system: Centrl handle the servos, and the two switches, which connect directly to the buttons with a small spring.

When testing the switches I see the problem is, it takes a lot and constant pressure to actuate the switch. This is sealed, is a plastic base with a button held with a metal frame “soldier” to four plastic.

Proceeded to slice three of these “rivets” to release the frame, remove the plastic circular button and also encounter a circular plate which makes contact is between two metal parts to the edges and a third metal circular area in the middle.

As expected, were very dirty, dusty and who knows what else. Clean everything thoroughly with a cloth and alcohol, leaving it clean.

I went to assemble, solder a few wires disconnected when opened, and tried again. The result was successful. I set up the joystick again and now not only works but is quite sensitive.
